A word-message warning that a travel lane is ending ahead, telling drivers the number of through lanes will be reduced.

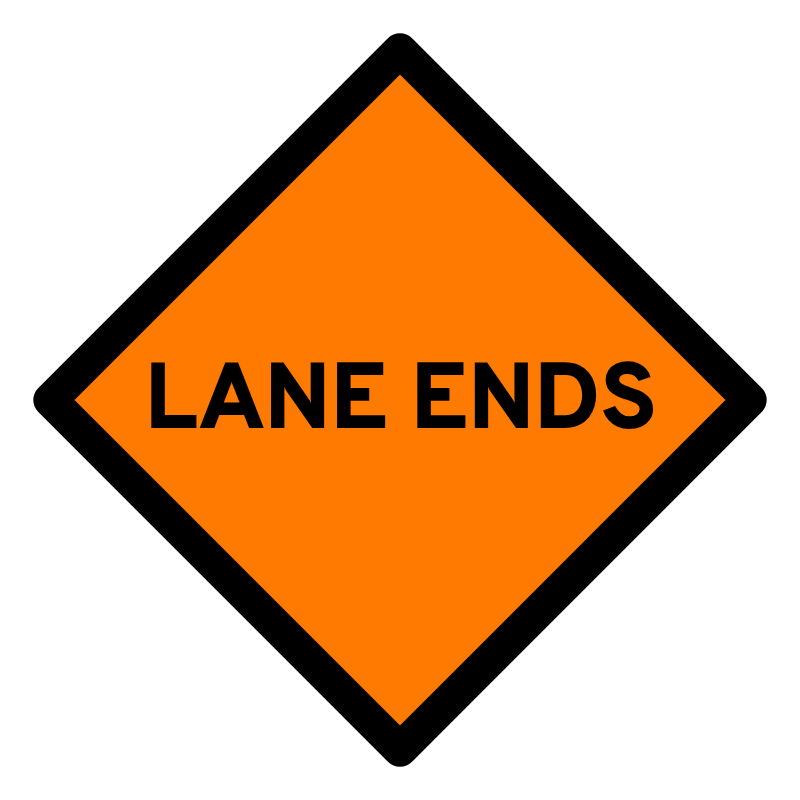

MUTCD-style sign reference illustration. Always verify against the official CA MUTCD and Caltrans sign charts.
| Sign code | W9-2 |
|---|---|
| Federal code | W9-2 |
| Name | Lane Ends |
| Category | Warning Signs |
| Shape | Diamond |
| Color | Orange background, black legend (temporary traffic control use) |
| California status | Used in California per CA MUTCD |
| Typical CA minimum size | 48" × 48" on conventional roads; 60" × 60" on expressways and freeways |
Download this sign or open the official MUTCD reference.
Official source: FHWA Standard Highway Signs, 2024 (11th Edition) — Warning & Temporary Traffic Control signs.
Source: FHWA Standard Highway Signs — Public Domain. California: CA MUTCD 2026 (effective Jan 18, 2026).
Files linked from FHWA are official government publications in the public domain. CA MUTCD and Caltrans links open official government websites. Always verify against the current edition.
A word-message warning that a travel lane is ending ahead, telling drivers the number of through lanes will be reduced.
A word-message warning that a travel lane is ending ahead, telling drivers the number of through lanes will be reduced. In the field, W9-2 Lane Ends is typically positioned at the advance warning area, ahead of the work. Common deployments include lane reductions ahead of a closure; supplements the W4-2 lane-ends symbol; used on higher-speed approaches needing extra notice. Always confirm its size, retroreflective sheeting, spacing, and placement against the CA MUTCD 2026 and the reviewing agency before finalizing the traffic control plan.
Used in California work zones as a word-message companion to the lane-ends symbol where additional emphasis on the lane reduction is warranted.
Common field deployments
Agency review note
StreetsLA, LA County DPW, and Caltrans District 7 may require larger sizes or additional devices. Verify with the reviewing agency before finalizing the TCP.
Typical minimum: 48" × 48" on conventional roads; 60" × 60" on expressways and freeways.
Sizes are CA MUTCD minimums and vary by roadway classification and speed. Verify against the CA MUTCD 2026 (CA MUTCD Part 6 (Temporary Traffic Control), Chapter 6F; warning-sign design in Part 2C), Caltrans sign specifications, and the reviewing agency.
Where it sits: Advance warning area, ahead of the work.
CA MUTCD reference: CA MUTCD Part 6 (Temporary Traffic Control), Chapter 6F; warning-sign design in Part 2C.
In Los Angeles, this sign must conform to CA MUTCD 2026. Work in City of LA right-of-way is reviewed by StreetsLA and the Bureau of Engineering (BOE); state highways in LA County are permitted and reviewed by Caltrans District 7; county roads are permitted by LA County DPW. Sizes, retroreflectivity, and placement must meet CA MUTCD minimums — local agencies may require larger signs based on roadway class, speed, pedestrian volume, and proximity to schools or transit.
Confirm the lane-ends message is consistent with the merge direction and taper. Public Ready reviews lane-reduction messaging.
These signs are typically deployed alongside W9-2 on a California TCP.
Need a LANE ENDS (W9-2) word sign? Public Ready can supply it with your lane-closure package.
Free official resource — opens official government website
Free official resource — opens official government website
Free official resource — opens official government website
Free official resource — opens official government website
Educational reference only. This is not an official Caltrans, FHWA, or local agency publication and is not legal or engineering advice. Always verify sign selection, size, placement, spacing, and application against the current CA MUTCD 2026, Caltrans sign specifications, Standard Plans, project documents, and the reviewing agency’s requirements.
