Warns specifically that the right-hand travel lane is closed ahead so traffic in that lane can merge left in advance of the closure.

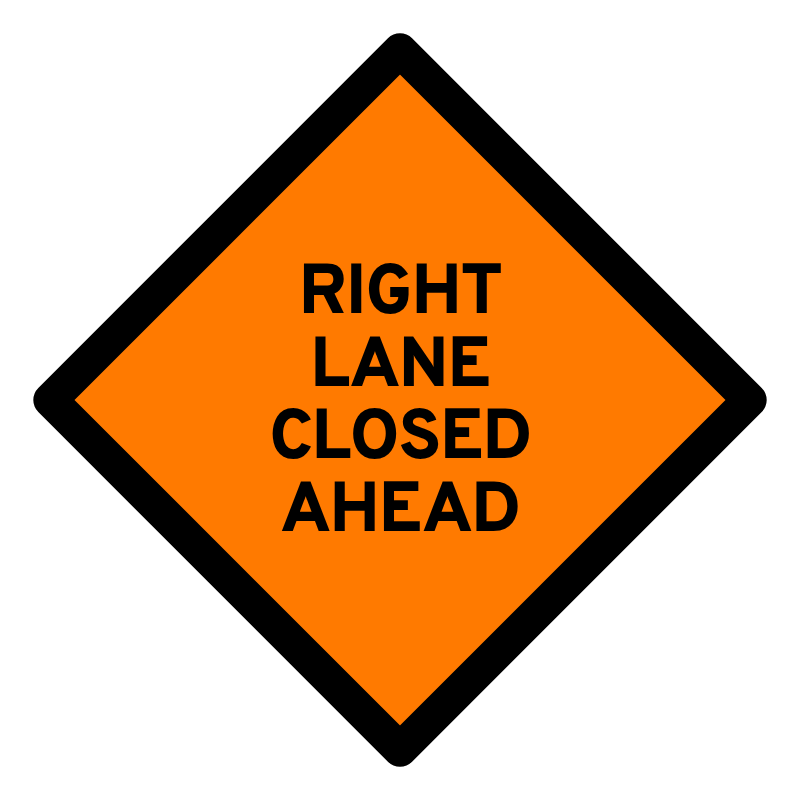

MUTCD-style sign reference illustration. Always verify against the official CA MUTCD and Caltrans sign charts.
| Sign code | W20-5a |
|---|---|
| Federal code | W20-5a |
| Name | Right Lane Closed Ahead |
| Category | Warning Signs |
| Shape | Diamond |
| Color | Orange background, black legend |
| California status | Used in California per CA MUTCD |
| Typical CA minimum size | 48" × 48" on conventional roads; 60" × 60" on expressways and freeways |
Download this sign or open the official MUTCD reference.
Official source: FHWA Standard Highway Signs, 2024 (11th Edition) — Warning & Temporary Traffic Control signs.
Source: FHWA Standard Highway Signs — Public Domain. California: CA MUTCD 2026 (effective Jan 18, 2026).
Files linked from FHWA are official government publications in the public domain. CA MUTCD and Caltrans links open official government websites. Always verify against the current edition.
Warns specifically that the right-hand travel lane is closed ahead so traffic in that lane can merge left in advance of the closure.
Warns specifically that the right-hand travel lane is closed ahead so traffic in that lane can merge left in advance of the closure. In the field, W20-5a Right Lane Closed Ahead is typically positioned at the advance warning area, ahead of the work. Common deployments include right-lane closures on multilane streets and highways; placed ahead of the merging taper; paired with arrow boards and cones or tubular markers. Always confirm its size, retroreflective sheeting, spacing, and placement against the CA MUTCD 2026 and the reviewing agency before finalizing the traffic control plan.
Used on California multilane roadways to direct a right-lane merge ahead of the taper, sequenced with advance warning and channelizing devices.
Common field deployments
Agency review note
StreetsLA, LA County DPW, and Caltrans District 7 may require larger sizes or additional devices. Verify with the reviewing agency before finalizing the TCP.
Typical minimum: 48" × 48" on conventional roads; 60" × 60" on expressways and freeways.
Sizes are CA MUTCD minimums and vary by roadway classification and speed. Verify against the CA MUTCD 2026 (CA MUTCD Part 6 (Temporary Traffic Control), Chapter 6F; warning-sign design in Part 2C), Caltrans sign specifications, and the reviewing agency.
Where it sits: Advance warning area, ahead of the work.
CA MUTCD reference: CA MUTCD Part 6 (Temporary Traffic Control), Chapter 6F; warning-sign design in Part 2C.
In Los Angeles, this sign must conform to CA MUTCD 2026. Work in City of LA right-of-way is reviewed by StreetsLA and the Bureau of Engineering (BOE); state highways in LA County are permitted and reviewed by Caltrans District 7; county roads are permitted by LA County DPW. Sizes, retroreflectivity, and placement must meet CA MUTCD minimums — local agencies may require larger signs based on roadway class, speed, pedestrian volume, and proximity to schools or transit.
Verify the merge direction matches field geometry and the taper begins after the warning. Public Ready confirms right-lane closure sequencing.
These signs are typically deployed alongside W20-5a on a California TCP.
Need RIGHT LANE CLOSED AHEAD (W20-5a)? Public Ready can supply the sign and matching lane-closure devices.
Free official resource — opens official government website
Free official resource — opens official government website
Free official resource — opens official government website
Free official resource — opens official government website
Educational reference only. This is not an official Caltrans, FHWA, or local agency publication and is not legal or engineering advice. Always verify sign selection, size, placement, spacing, and application against the current CA MUTCD 2026, Caltrans sign specifications, Standard Plans, project documents, and the reviewing agency’s requirements.
