The California application of the ROAD WORK AHEAD warning, reflecting CA MUTCD and Caltrans conventions for legend, size, and fluorescent orange sheeting in work zones.

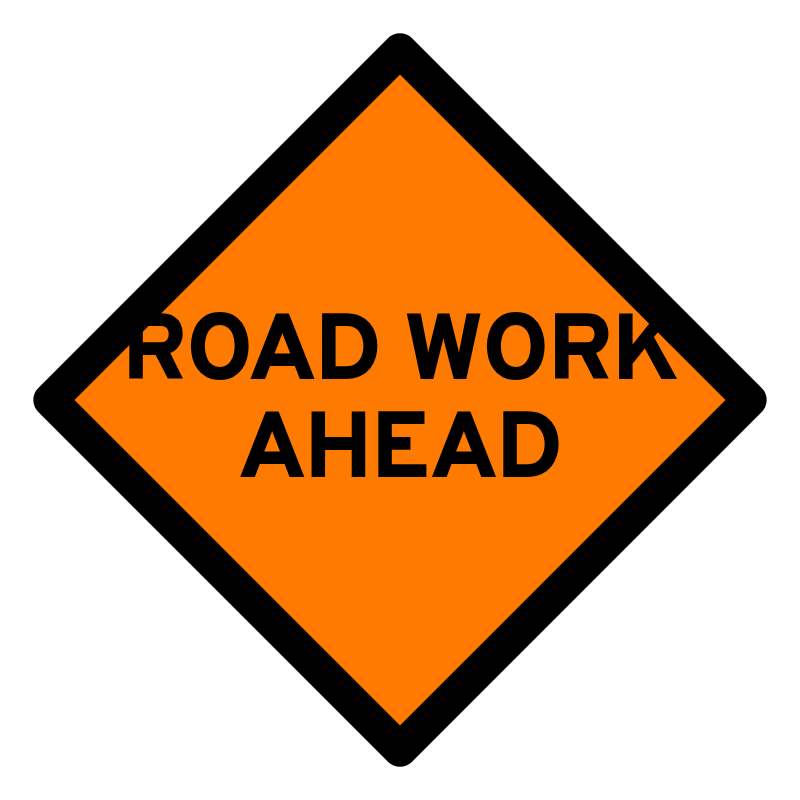

MUTCD-style sign reference illustration. Always verify against the official CA MUTCD and Caltrans sign charts.
| Sign code | W20-1(CA) |
|---|---|
| Federal code | W20-1 |
| Name | Road Work Ahead (California) |
| Category | Warning Signs |
| Shape | Diamond |
| Color | Fluorescent orange background, black legend |
| California status | California-specific (CA MUTCD) |
| Typical CA minimum size | 48" × 48" on conventional roads; 60" × 60" on expressways and freeways |
Download this sign or open the official MUTCD reference.
Official source: FHWA Standard Highway Signs, 2024 (11th Edition) — Warning & Temporary Traffic Control signs.
Source: FHWA Standard Highway Signs — Public Domain. California: CA MUTCD 2026 (effective Jan 18, 2026).
Files linked from FHWA are official government publications in the public domain. CA MUTCD and Caltrans links open official government websites. Always verify against the current edition.
The California application of the ROAD WORK AHEAD warning, reflecting CA MUTCD and Caltrans conventions for legend, size, and fluorescent orange sheeting in work zones.
The California application of the ROAD WORK AHEAD warning, reflecting CA MUTCD and Caltrans conventions for legend, size, and fluorescent orange sheeting in work zones. In the field, W20-1(CA) Road Work Ahead (California) is typically positioned at the advance warning area, ahead of the work. Common deployments include caltrans and local-agency work zones in California; sized per Caltrans sign specifications for the road type; fluorescent orange sheeting for work-zone warning. Always confirm its size, retroreflective sheeting, spacing, and placement against the CA MUTCD 2026 and the reviewing agency before finalizing the traffic control plan.
California uses the federal W20-1 with the CA MUTCD's California modifications, including sign sizes from the Caltrans sign specifications and Standard Plans for the roadway type.
Common field deployments
Agency review note
StreetsLA, LA County DPW, and Caltrans District 7 may require larger sizes or additional devices. Verify with the reviewing agency before finalizing the TCP.
Typical minimum: 48" × 48" on conventional roads; 60" × 60" on expressways and freeways.
Sizes are CA MUTCD minimums and vary by roadway classification and speed. Verify against the CA MUTCD 2026 (CA MUTCD Part 6 (Temporary Traffic Control), Chapter 6F; warning-sign design in Part 2C), Caltrans sign specifications, and the reviewing agency.
Where it sits: Advance warning area, ahead of the work.
CA MUTCD reference: CA MUTCD Part 6 (Temporary Traffic Control), Chapter 6F; warning-sign design in Part 2C.
In Los Angeles, this sign must conform to CA MUTCD 2026. Work in City of LA right-of-way is reviewed by StreetsLA and the Bureau of Engineering (BOE); state highways in LA County are permitted and reviewed by Caltrans District 7; county roads are permitted by LA County DPW. Sizes, retroreflectivity, and placement must meet CA MUTCD minimums — local agencies may require larger signs based on roadway class, speed, pedestrian volume, and proximity to schools or transit.
Confirm California sizing and sheeting per Caltrans specs and the CA MUTCD. Public Ready checks California-specific sign details on the TCP.
These signs are typically deployed alongside W20-1(CA) on a California TCP.
Need the California ROAD WORK AHEAD per Caltrans specs? Public Ready can supply correctly sized California work-zone signs.
Free official resource — opens official government website
Free official resource — opens official government website
Free official resource — opens official government website
Free official resource — opens official government website
Educational reference only. This is not an official Caltrans, FHWA, or local agency publication and is not legal or engineering advice. Always verify sign selection, size, placement, spacing, and application against the current CA MUTCD 2026, Caltrans sign specifications, Standard Plans, project documents, and the reviewing agency’s requirements.
